Conference room folding partition wall separating wall partition wall acoustic movable partition
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with
double rubber seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied
operating handle | Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or
double open in two panel | Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
Manufacturer based
We are a professional comprehensive acoustic folding partition movable wall Manufacturer in Guangzhou, China, we make sure to offer the best solutions of space flexible.
We can also provide sliding aluminium profile samples for client.Such as sliding aluminium track,roller,connector,aluminium frame,top and bottom seal rubber,retractable mechanism and etc.
Product Description
1. Poduction: 5000 squre meter per month;
2. All products are customized;
3. Three series for different choice:
65mm-up to 4ms H, 85mm-up to 6ms H, 100mm-up to 13ms H;
4. Panels width: 600mm to 1200mm, also can 2ms width for special request;
5. Panels height: up to 13ms height.
6. Panels thickness: 65mm-(2 9/16)", 85mm-(3 3/8)", 100mm-(3 15/16)",
7. Sound proof: from 20db to 53db.
Features & Benefits:

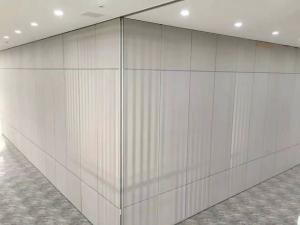

1.Movable, interlocking panels suspended from an overhead track system
2.Sound rated panels for effective noise control
3.Available in paired (folding) and individual (omni-directional) configurations
4.Can include access doors for easy entry and exit
5.Blend with a room's aesthetics, similar to a permanent wall when extended.
6.Available in a wide range of colours and finishes, including: MDF, Melamine, Fabric, Leather, veneer,Landscope painting, Wall paper, Wood mouldings, etc.
FAQ
1:What you should you do on site?
A beam (truss)should built on site for track installation.The minimum distance leaving for track installation from false ceiling to top ceiling is 180mm.
2:How to install?
We will provide the installation manual and video guiding the installation job.We can also dispatch the installation engineer supervising the installation as request.
3:What is lead time ?
The lead time is 7 days to 10days.
4:How to ransport?t
Sea transport is a common mode of transportation.In an emergency,can be air freight .
5:How do the goods packing?
Carton paper package ,MDF batten cover all around cotner.
6:What is procurement procedure?
Firstly, seng us the shop drawing (if the shop drawings is not available ,you can tell us the height from false ceiling to finfshed floor and width from wall to wall)Secondly, we offer you the movable wall layout drawings for your confirmation.Thirdly, we quote the movable wall in acordance with confirmed
